Gas Stove gaskets

gingerrob

gingerrob

Messages
27
Location
hampshire
Vehicle
T4 PopTop
My stive has a few little leaks aroung the burner base so disassembled it and foung the paper gaskets have disintegrated.

Bought some replacement camer ones on line but they are way to thick and cannot get the burner head back on with them in place.

Anyone know where to get the right ones? My stove is LPG by the way..

My stive has a few little leaks aroung the burner base so disassembled it and foung the paper gaskets have disintegrated.

Bought some replacement camer ones on line but they are way to thick and cannot get the burner head back on with them in place.

Anyone know where to get the right ones? My stove is LPG by the way..
Looks like they were discontinued by VW in 2010.
I'm sure one of the T4 members will be along shortly with some advice. The VW part numbers are below.
Screen Shot 2016-11-26 at 12.53.03.jpg

or here http://www.oemepc.com/vw/part_singl...070/subcategory/155000/part_id/3707138/lang/e

The stove you have (assuming it's original) was made by Dometic Cramer. They still manufacture a lot of kit for motorhomes and caravans today. The gaskets you require are available from most caravan specialists. You could try searching eBay for some or try here. Remember you'll need four gaskets in total, each burner has one above the cooking surface and one below.

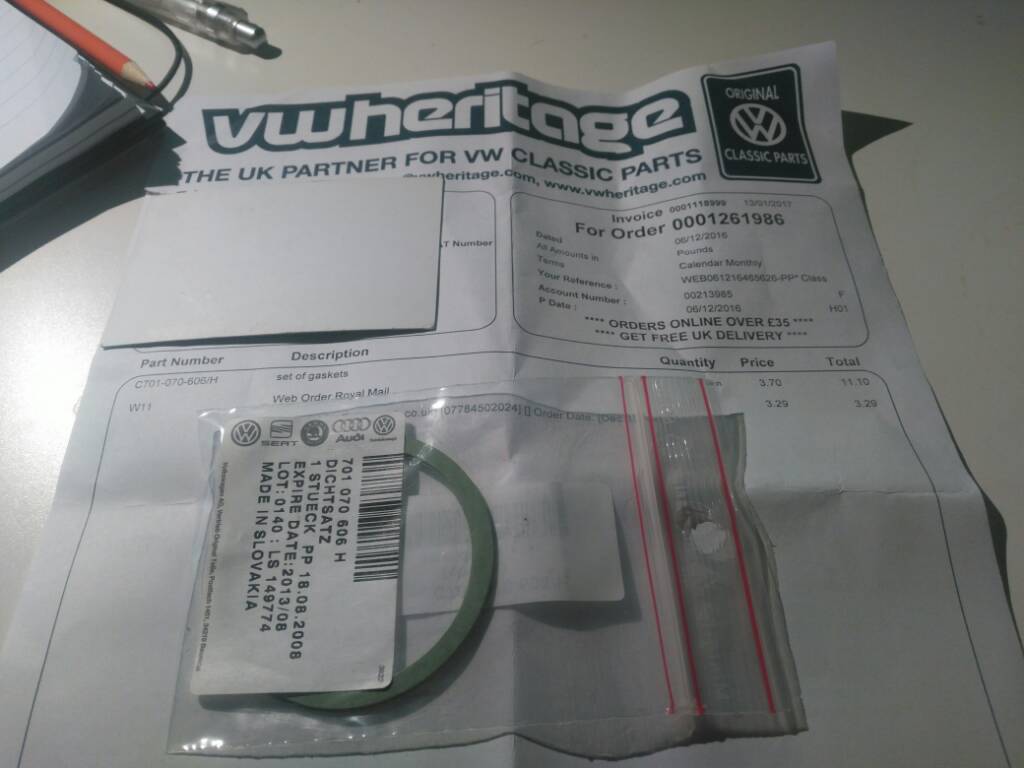

I have got some courtesy of the part number above and vw heritage. Took a while to arrive but they are spot on OEM parts and cost £3.70 for a pair. Part no is c701-070-606/h


Sent from my Wileyfox Swift using Tapatalk

can anyone tell me if the gasket set is the same for the removable and non-removable gas hobs? mine is removable but the parts diagram is not showing separate gaskets for that configuration.
Peter

can anyone tell me if the gasket set is the same for the removable and non-removable gas hobs? mine is removable but the parts diagram is not showing separate gaskets for that configuration.
Peter

Only two types of stove I’m aware of - gas or meths. The gas has gaskets above and below the stainless metal surface.


Sent from my iPhone using Tapatalk

Hi all, I have a leak on one of the burners on my hob, flame from around the base of it. I'm searching for the gaskets for it.
Are they made from paper or rubber? Does anyone know the size of them so that I can be sure I'm ordering the correct ones.
These are the ones I've found.

Regards Padraic.
