What’s this hanging underneath

[Hillsiders]

Any ideas what these two straps are and why they might come detached. Should I be concerned



[Hillsiders]

Second photo



[Perfectos]

Do you have side bars ?



[briwy]

The indentations on the udertray are normally where there is a bolt to fasten it on so it looks the hanging down bit is some sort of bracket which fits into the indentation and should have a bolt through it.



[B J G]

It's one of the Bumper plastic securing brackets, fixes to body with a self tapping screw.

if you look under there are more the same.



[Hillsiders]

Any ideas what these two straps are and why they might come detached. Should I be concerned

View attachment 81715

Do you have side bars ?

No



[Perfectos]

the second photo shows it clearer, they are the bumper ties as BJG says



[Hillsiders]

Thanks all rear bumper ties seems the general consensus Thanks. Went over a particularly nasty sleeping policeman recently so I might have caught the bumper then.



[Wesel]

This seem to be a frequent problem. I had it in the first few months, and my son has the same problem on his Multivan.
Do you know what type of fixation is needed to reattach it?



[Hillsiders]

This seem to be a frequent problem. I had it in the first few months, and my son has the same problem on his Multivan.
Do you know what type of fixation is needed to reattach it?

Apparently Wesel it’s a self-tapping screw but I haven’t checked the size yet.



[B J G]

This seem to be a frequent problem. I had it in the first few months, and my son has the same problem on his Multivan.
Do you know what type of fixation is needed to reattach it?

These I think?

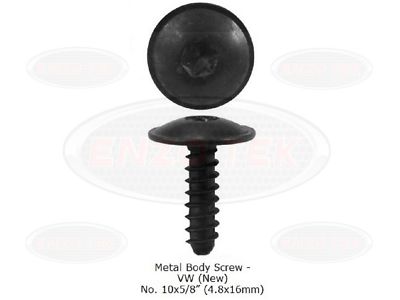

10x VW Metal Body Screw 4.8mm x 16mm Bodyshop Fixings | eBay

Find many great new & used options and get the best deals for 10x VW Metal Body Screw 4.8mm x 16mm Bodyshop Fixings at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk



[BeeBee]

Not sure where to post this … just took dogs bed out of van, been for a run. The middle rail on the floor underneath dogs bed was ‘roasting’, the other two rails felt normal ?
Any advice as to what this could be ?



[WelshGas]

Not sure where to post this … just took dogs bed out of van, been for a run. The middle rail on the floor underneath dogs bed was ‘roasting’, the other two rails felt normal ?
Any advice as to what this could be ?

Exhaust? Middle silencer is off central line on sliding door side. Normally I would expect there to be a heat shield between silencer and body, but the exhaust will get quit hot if a DPF regeneration was happening prior to stopping.



[Ozzy Pete]

Not sure where to post this … just took dogs bed out of van, been for a run. The middle rail on the floor underneath dogs bed was ‘roasting’, the other two rails felt normal ?
Any advice as to what this could be ?

Has the dog just been sleeping on it.?



[BeeBee]

Exhaust? Middle silencer is off central line on sliding door side. Normally I would expect there to be a heat shield between silencer and body, but the exhaust will get quit hot if a DPF regeneration was happening prior to stopping.

There was a DPF regen as I heard it when emptying the van.
But are you saying that a heat shield may be missing … it was roasting !



[BeeBee]

Has the dog just been sleeping on it.?

The dogs mat is on the floor and he lies there



[WelshGas]

There was a DPF regen as I heard it when emptying the van.
But are you saying that a heat shield may be missing … it was roasting !

Possible but unlikely. Normally, vehicle movement would transfer heat away, but standing still, heat rises.



[WelshGas]

The dogs mat is on the floor and he lies there

I’m sure he would move if it was too hot.



[WelshGas]

Possible but unlikely. Normally, vehicle movement would transfer heat away, but standing still, heat rises.

Parts 2 & 3 are the Heat shields.

heat shield VW CAMPMOB. (TYP2/TRANSP./LT)

Parts for unit heat shield VW CAMPMOB. (TYP2/TRANSP./LT)

www.ilcats.ru
