Chair repair problems.... advice please!

[KBR]

Hi All,

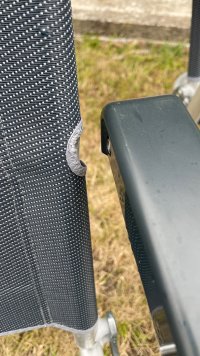

One of my tailgate chairs managed to shed some parts. It's the attachment of the arm to the main body, as per pic:



So, I bought the chair repair kit and also the required screws and thought it would be easy....

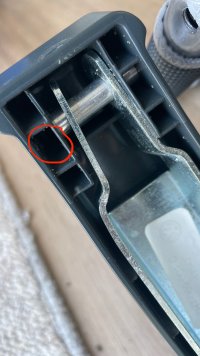

However, when I tried to screw in the new fitting, there was no thread to pull it in. On closer inspection of the underside of the arms, I can clearly see another missing part compared to the side which is OK:

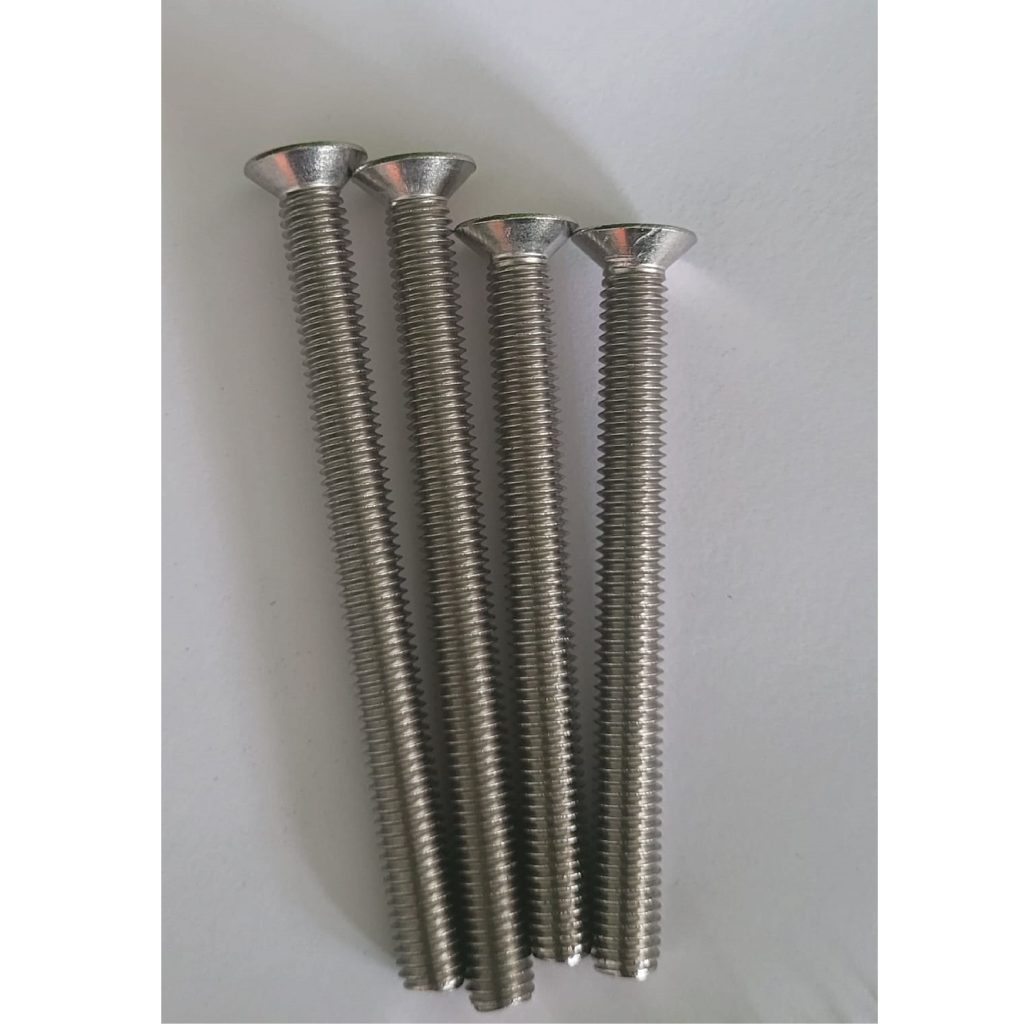

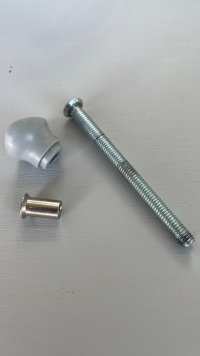

So, my questions are, do I have all the correct parts to fit this? I ordered these two things:

https:///product/campervan-parts/vw...ornia-camping-chair-repair-kit-7h7-098-091-a/

VW California Camping Chair Side Screw Fixing Kit - CampervanBits

The Genuine VW Camping chair side screw fixing kit.

vwcaliforniaclub.com

And secondly, how on earth do I get the part that's missing back in place. It looks like it's impossible to fit into that small plastic space.

Many thanks in advance if someone can help!



[secret lemonade drinker]

Is the gold "bush" not a Clinch nut (a threaded Rivet / Insert) that need to be inserted and pulled tight to expand and create your "missing" part?
If so you will need a specific tool to make that work!



[secret lemonade drinker]

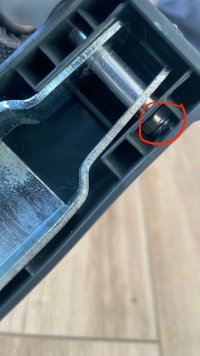

On closer inspection the bit you have encircled looks like a Nylock Half Nut so you might need one of these with the matching thread to your long screw



[secret lemonade drinker]

Insert it with long nose pliers
