Rear light wireing loom socket/plug

[Arnieardbits]

Hello all, i have a T5 Cali. Water has got into the rear light cluster and rusted the 6 terminals. I have found the 5 bulb connection unit 7E5.945.257, but I need the wire loom connector as well. Any ideas where i can get one? Thanks



[ArunAlec]

Hello all, i have a T5 Cali. Water has got into the rear light cluster and rusted the 6 terminals. I have found the 5 bulb connection unit 7E5.945.257, but I need the wire loom connector as well. Any ideas where i can get one? Thanks

I suspect the VW solution is a loom replacement! @Loz may be able to help. Maybe a scrap yard job, then splice the “new connector“ to the existing wiring.



[Perfectos]

I believe there are some threads on the T5 forum discussion regarding this exact issue, it’s a relatively common problem with the T5 that only becomes apparent when the light fails, from memory a splice is an option , replacing the loom is a much bigger job. And not a simple straight forward job.
Can the exiting contacts be cleaned up ?



[Arnieardbits]

the contacts have completely rusted away. happy to splice in, but need the connector. Thanks



[Perfectos]

Any use

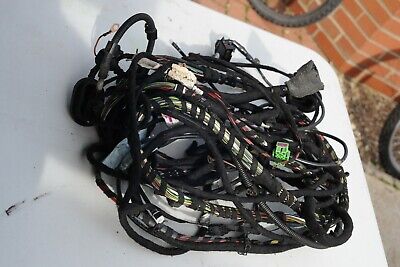

VOLKSWAGEN T5 shuttle 2.5 WIRING LOOM HARNESS 03/09 rear light loom | eBay

This is a VW T5 Shuttle wiring loom for the rear lights and other fun stuff back there.

www.ebay.co.uk



[Perfectos]

From memory the problem is the loom is one continuous link from the front fuse box, I,e. No serviceable part or removable connectors
