Door Mirror Glass

[DM]

A motorhome took out my drivers door mirror in the lakes today - despite me being literally in the hedge and practically stationary !!! . Fortunately the mirror body seems to have survived but the glass smashed. Hopefully the wiring for the heating element has survived - no way of knowing until I replace the glass I guess.

I’m trying to work out how much I need to replace. Am I just replace the mirror glass or do I need to get it pre-mounted on the plastic clip-in assembly.

Thanks.



[WelshGas]

A motorhome took out my drivers door mirror in the lakes today - despite me being literally in the hedge and practically stationary !!! . Fortunately the mirror body seems to have survived but the glass smashed. Hopefully the wiring for the heating element has survived - no way of knowing until I replace the glass I guess.

I’m trying to work out how much I need to replace. Am I just replace the mirror glass or do I need to get it pre-mounted on the plastic clip-in assembly.

Thanks.

Any help? 2020 T6

exterior mirror VW CAMPMOB. (TYP2/TRANSP./LT)

Parts for unit exterior mirror VW CAMPMOB. (TYP2/TRANSP./LT)

www.ilcats.ru



[kurienp]

When a motorhome took out my driver side mirror in the (guess where .... ) lakes , the mirror (part 12 in the image from WG) just snapped out and the retaining clips for part 6 broke. I only had to replace part 6. everything else just snapped back in. In my case, the motorhome never stopped ... and happily went on his way.

If only the mirror is broken, you can get replacements. It just clips in.



[KGCali]

A motorhome took out my drivers door mirror in the lakes today - despite me being literally in the hedge and practically stationary !!! . Fortunately the mirror body seems to have survived but the glass smashed. Hopefully the wiring for the heating element has survived - no way of knowing until I replace the glass I guess.

I’m trying to work out how much I need to replace. Am I just replace the mirror glass or do I need to get it pre-mounted on the plastic clip-in assembly.

Thanks.

My heated driver's mirror began to vibrate a lot, the glass was coming unstuck from the plastic back so I purchased a replacement off of eBay, simple to fit (see YouTube) and all working fine now...

VW Transporter T5 T6 Heated Mirror Glass Clip On Wide Angle O/S 2010 2019 | eBay

Other Vehicles: VW Transporter T5, VW Caravelle. VW Transporter T5 - 2010 to 2015. VW Transporter Wing Mirror Glass + Backing Plate. VW Caravelle – 2010 to 2015. Heated Glass. Aspheric Wide Angle. Blind Spot Section.

www.ebay.co.uk



[DM]

When a motorhome took out my driver side mirror in the (guess where .... ) lakes , the mirror (part 12 in the image from WG) just snapped out and the retaining clips for part 6 broke. I only had to replace part 6. everything else just snapped back in. In my case, the motorhome never stopped ... and happily went on his way.

If only the mirror is broken, you can get replacements. It just clips in.

I think it’s just the actual mirror glass - part 12 - that is broken. But it seems to be bonded to a plastic backplate that looks different to WG’s schematic. Mine is a T6.



[DM]

My heated driver's mirror began to vibrate a lot, the glass was coming unstuck from the plastic back so I purchased a replacement off of eBay, simple to fit (see YouTube) and all working fine now...

VW Transporter T5 T6 Heated Mirror Glass Clip On Wide Angle O/S 2010 2019 | eBay

Other Vehicles: VW Transporter T5, VW Caravelle. VW Transporter T5 - 2010 to 2015. VW Transporter Wing Mirror Glass + Backing Plate. VW Caravelle – 2010 to 2015. Heated Glass. Aspheric Wide Angle. Blind Spot Section.

www.ebay.co.uk

Is it just a case of glueing the new glass to the old backplate?



[WelshGas]

I think it’s just the actual mirror glass - part 12 - that is broken. But it seems to be bonded to a plastic backplate that looks different to WG’s schematic. Mine is a T6.

The parts diagram is for the 2020 model, according to the site.



[KGCali]

I think it’s just the actual mirror glass - part 12 - that is broken. But it seems to be bonded to a plastic backplate that looks different to WG’s schematic. Mine is a

Is it just a case of glueing the new glass to the old backplate?

The eBay item is an assembly of the plastic backing plate, heater element and mirror so you just unclip the old one, remove the two heater wires, replace the wires onto to new one and firmly clip back on. Take a look at this video ...



[DM]

Thanks - I just ordered one to click and collect I’m Penrith later this week



[CampervanTime]

Just make sure the radio and bluetooth all work as expected - no 18 on the picture is the DAB antenna I believe...



[DM]

Just make sure the radio and bluetooth all work as expected - no 18 on the picture is the DAB antenna I believe...

Bluetooth and FAB working fine - phew.



[DM]

My heated driver's mirror began to vibrate a lot, the glass was coming unstuck from the plastic back so I purchased a replacement off of eBay, simple to fit (see YouTube) and all working fine now...

VW Transporter T5 T6 Heated Mirror Glass Clip On Wide Angle O/S 2010 2019 | eBay

Other Vehicles: VW Transporter T5, VW Caravelle. VW Transporter T5 - 2010 to 2015. VW Transporter Wing Mirror Glass + Backing Plate. VW Caravelle – 2010 to 2015. Heated Glass. Aspheric Wide Angle. Blind Spot Section.

www.ebay.co.uk

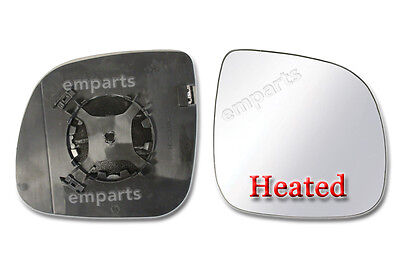

I got this glass and have replaced it. But despite it stating it is a direct replacement for a 2015-2020 T6 the spades for the heating element are in a different position and the wires are not long enough to reach.

the original is on the right below. It’ll do for now but I’ll have to get either an original or better alternative for winter.



[KGCali]

I got this glass and have replaced it. But despite it stating it is a direct replacement for a 2015-2020 T6 the spades for the heating element are in a different position and the wires are not long enough to reach.

the original is on the right below. It’ll do for now but I’ll have to get either an original or better alternative for winter.

View attachment 78787

Show the picture to the supplier and he may replace it with the correct one or you could always extend the wires at a push.
You need this type ...

Fits VW T6 15-22 wing mirror glass for Right Driver side with blind spot heated | eBay

However, replacing your mirrors doesn’t have to be costly. Why should I replace my broken wing mirror ?. Volkswagen Transporter 2015-2022 Right Silver / Clear Standard Mirror Assembly Heated. Glass Type.

www.ebay.co.uk



[DM]

Show the picture to the supplier

I’ll try that - not too bothered for £14 - I’d happily have paid that for a temporary replacement. I could try to extend the wires but I don’t want to cut them so that’d mean finding the right spade connectors.
