Finding a ground for fitting dash cam on a T6

[steve and lisa]

Hi Guys I am just fitting my dash cam on my T6 and I have the hard wire kit which I have run the cablling down to the fuse box which is all good, I have piggy backed the fuse but I can't find a ground anywhere down here! Any pointers please?



[Loz]

Hi Guys I am just fitting my dash cam on my T6 and I have the hard wire kit which I have run the cablling down to the fuse box which is all good, I have piggy backed the fuse but I can't find a ground anywhere down here! Any pointers please?

There are a couple of proper earth studs under the dash. see the attached.



[Teejay]

Not sure if it's listed in Liz's doc but I found one at the back of the pedals up high.

That would have saved me a few hours.



[Kmann]

I fitted mine just behind the control panel. Super easy and all you need is there …



[Erbster]

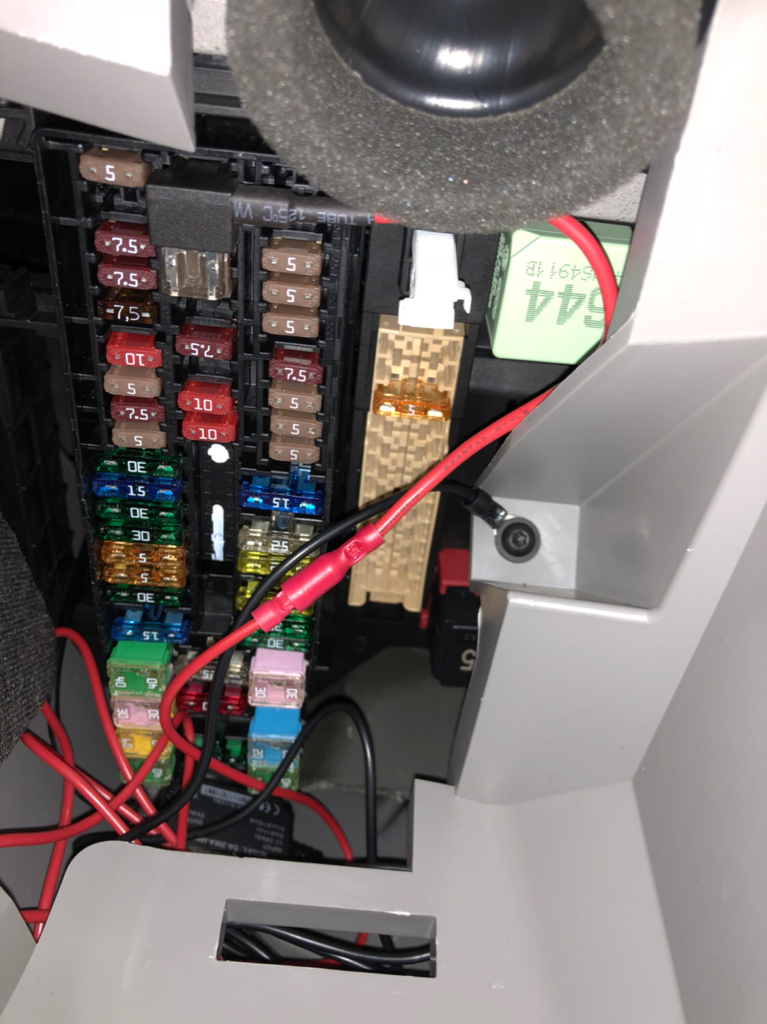

I fitted a Nextbase 512GW with a hard wiring kit into the fuse box under the dash. I too wondered where to get an earth from, when I noticed a screw holding the plastic trim in place was screwed into metal. I did not think it would work, but to my amazement the camera powered on ok! You can see the screw on the right of the pic. The switched live is a piggy back off the top fuse in the middle row.
