What is this?

Eremita

Eremita

VIP Member
Messages
42
I was looking under the van as it seemed a lot of water coming from the air conditioner


anf I found this red box with two flashing lights


Do you have any idea? What is it?

Tx

Jay17cali

Jay17cali

VIP Member
Messages
835
Location
Manchester
Vehicle
T6 Ocean 150
Strange don’t think that should be there ????have you been in to the dealers for any work recently??

Jabberwocky

Jabberwocky

Forever young (ish!)
Moderator
VIP Member
Messages
3,393
Location
My World
Vehicle
T6 Ocean 150
Could it be something to do with headlight beam adjustment that a mechanic left behind?

B J G

B J G

VIP Member
Messages
1,933
Location
Stamford
Vehicle
T6 Ocean 204 4Motion
I see an air suspension height sensor, do you have a remote control for that?
It might be the receiver box, just a guess.

Try tracing the red wire back.

Eremita

Eremita

VIP Member
Messages
42
No, I bought the van one month ago from a vw dealer. It’s a 2016 beach.
Btw, what is it and where it should be? Tomorrow I can make a call to the dealer with a precise idea...

Eremita

Eremita

VIP Member
Messages
42
I see an air suspension height sensor, do you have a remote control for that?
It might be the receiver box, just a guess.

Try tracing the red wire back.
No, or at least I don’t know

Jay17cali

Jay17cali

VIP Member
Messages
835
Location
Manchester
Vehicle
T6 Ocean 150
By the look of the cable ties it’s not been left there by mistake.??

Eremita

Eremita

VIP Member
Messages
42
One more question: how much water usually comes out when stopping the van with air con on?
Did not remember this amount with my previous t5. Have never seen, to be honest.
This is from the T6, front and rear

B J G

B J G

VIP Member
Messages
1,933
Location
Stamford
Vehicle
T6 Ocean 204 4Motion
Looks like a speaker symbol, might be an alarm sounding unit but for what?
tracing the wire back seems the only method to uncover it's purpose.

Have a look under the front wheel arch over the top of the tyre at the suspension strut, if a steel spring there then normal suspension but if a rubber bag of some sort then it has air suspension but should have a control unit panel inside or a remote.

B J G

B J G

VIP Member
Messages
1,933
Location
Stamford
Vehicle
T6 Ocean 204 4Motion
With a start from above i found this being an anti rodent system, like having a dedicated cat to guard the Cali. First time I've come across such a device.


TripleBee

TripleBee

Messages
964
Location
Belgium
Vehicle
T5 SE 140
I think there will be no problem at all.
The water at the front is probably from the airo at the front.
The water at the rear is from the airco at the rear.
The red box is indeed ultrasonic anti rodent.
The height sensor if for auto levelling of the xenon/LED headlights.

You could track the airo water outlet down if you open the bonnet. Look behind the engine under the windscreen wipers. In the heath shield there will be a black rubber plug with a nose downwards. There is the airo outlet at the front.
The water at the rear would look like this:
Or even worse if the environment is more damp than in France this summer.

WelshGas

WelshGas

Retired after 42 yrs and enjoying Life.
Top Poster
Lifetime VIP Member
Messages
13,344
Location
Cowbridge
Vehicle
T5 SE 180 4Motion
The more humid the atmosphere then the more water from the Aircon drains.

TripleBee

TripleBee

Messages
964
Location
Belgium
Vehicle
T5 SE 140
Front airco water outlet is behind the air filter housing.

Eremita

Eremita

VIP Member
Messages
42
I admit I did’t know about martens problem, which seems to be a quite big issue in alpin countries.

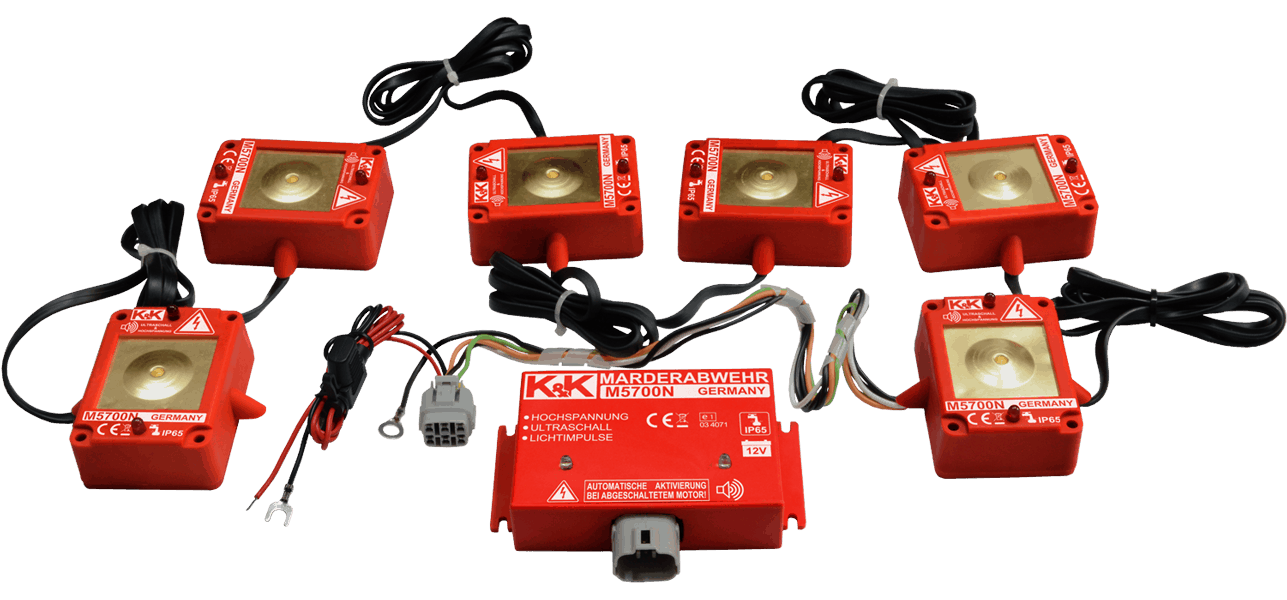

By the way, I had a deeper look at the system

And the switch that automatically cut the voltage when opening the bonnet... hopefully
