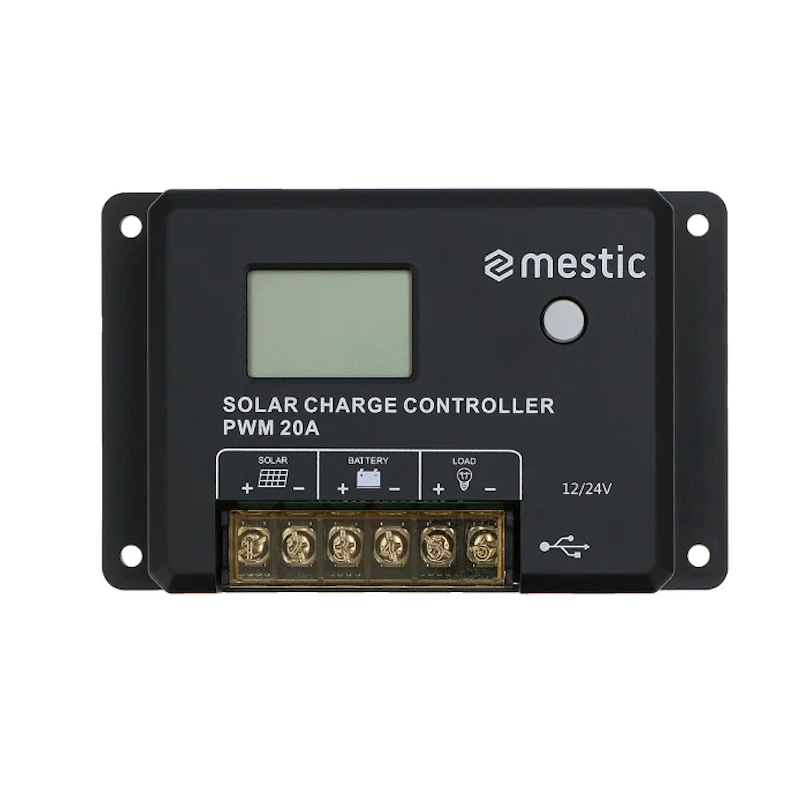

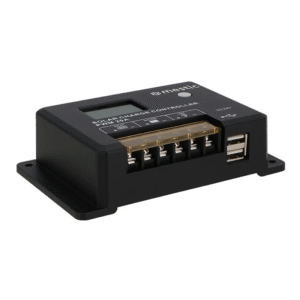

Mestic Solar Charge Controller PWM MSC-2020 – 20A

Mestic Solar Charge Controller PWM MSC-2020 – 20A

The Mestic Solar Charge Controller PWM MSC-2020 means you can connect your solar panel to the battery with ease.

By using a regulator you charge your battery safely and extend its life. The Mestic MSC-2020 regulator with PWM technology is suitable for solar panels up to 300 W.

A charge controller adjusts the voltage level of the solar panel toward the voltage of the battery. This charges the battery safely and extends its life.

This solar charge controller with PWM technology is suitable for charging wet, gel, sealed, and lithium batteries.

The large LCD display allows you to easily view and set the operating status of the regulator and the battery charge level. You can also use the display to select multiple battery types.

In addition, the solar charge controller is equipped with extensive electronic protection. This prevents overcharging, excessive discharge, short circuits, high voltage and reverse polarity connection. This allows you to generate green energy in a safe way!

Main benefits

• Suitable for solar panels up to 300 W
• Suitable for wet, gel, sealed, and lithium batteries
• Protected against: overload, excessive discharge, short circuits, high voltage,e and reverse polarity connection
• Prolongs battery life
• System voltage: 12 V / 24 V
• Current: 20 A (charging)
• Input voltage: 55 V

Specifications

• Model: PWM MSC-2020
• Colour: Black
• Rated charging current: 20Amp
• Battery voltage range: 9 – 32v
• Max PV input power: 300w – 12v
• Battery Type: Lead-acid – AGM – Lithium
• Dual USB output
• Weight: 0.18kg
• Dimensions (HxWxD): 3.6 x 8.5 x 13.4cm
• Warranty: 1 year
• Quality mark: CE, ROHS

Advanced technologies

The PWM Solar charge controller MSC-2020 can handle 20 A of current and is compatible with a solar panel up to 300 W. The cost-efficient PWM controller MSC-2020 is suitable for smaller solar panels, which generate up to 300 W under ideal conditions.

This is because the lower output is commensurate with the lower purchase price (compared to an MPPT charge controller). The Mestic PWM charge controller uses advanced techniques.

Consider charging in three stages: bulk, boost, and float. It keeps the battery in top condition thanks to the desulfation function and takes into account the characteristics and charge level of the battery.

Also, the solar charge controller has a function that automatically compensates the battery temperature.

In short, the Mestic Solar Charge Controller PWM MSC-2020 connects your solar panel to the battery and ensures that it is safely charged. The charge controller thus extends the life of the battery.
