Heating upstairs

[GrumpyGranddad]

Very slick! Where did you get the black 90-degree duct?!

Screwfix. Standard white one sprayed black.

Screwfix. Standard white one sprayed black.

and obviously cut to fit the grill in the Cali.



[ThomasHJ]

Finished mine today as well. Used black ducting hose and spray painted the white duct ends mat black for a less DIY-look. I'm quite happy with the result. And.... I did a small test in which I measured the temperature with and without the hose in place. See the end of my post for the results.

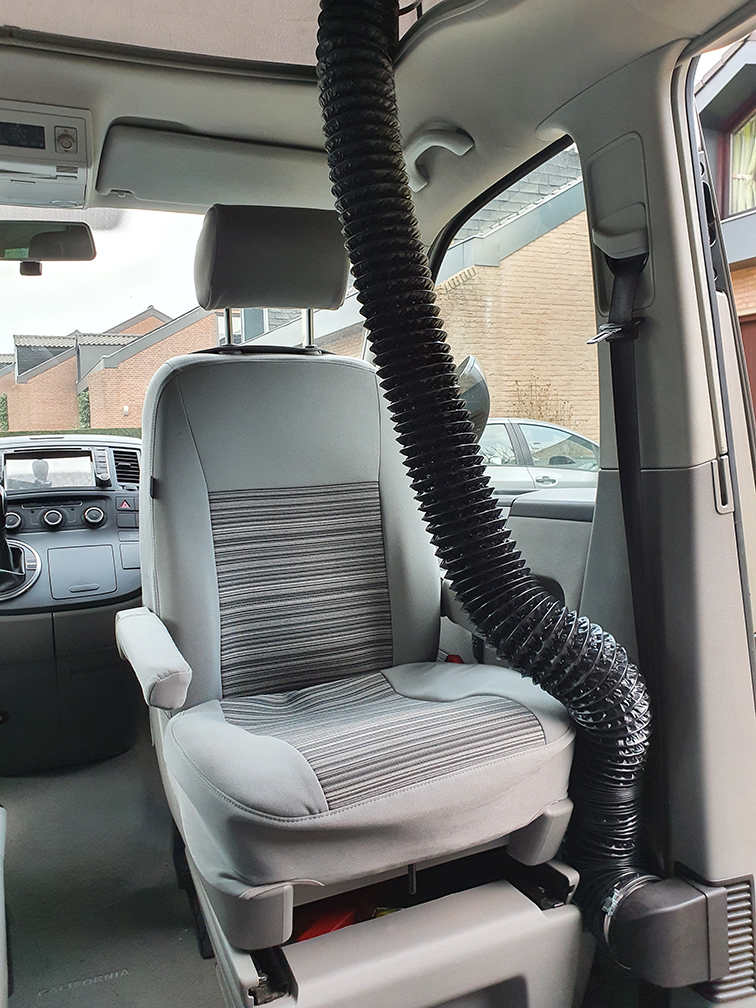

The entire setup in place.

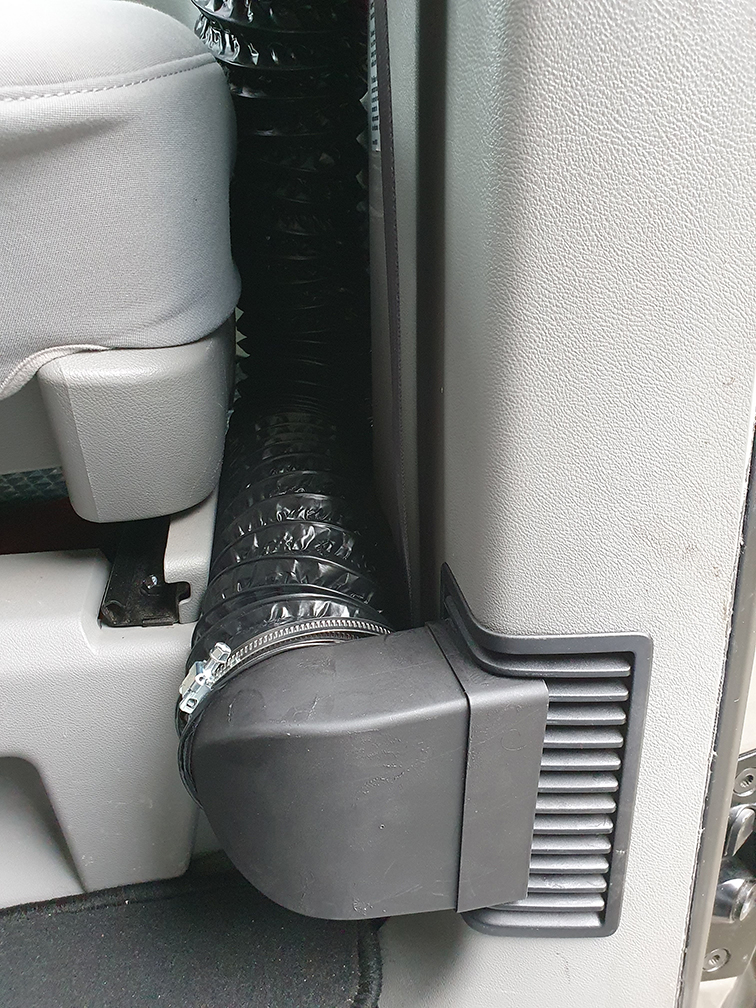

The part that goes into the B-pillar vent

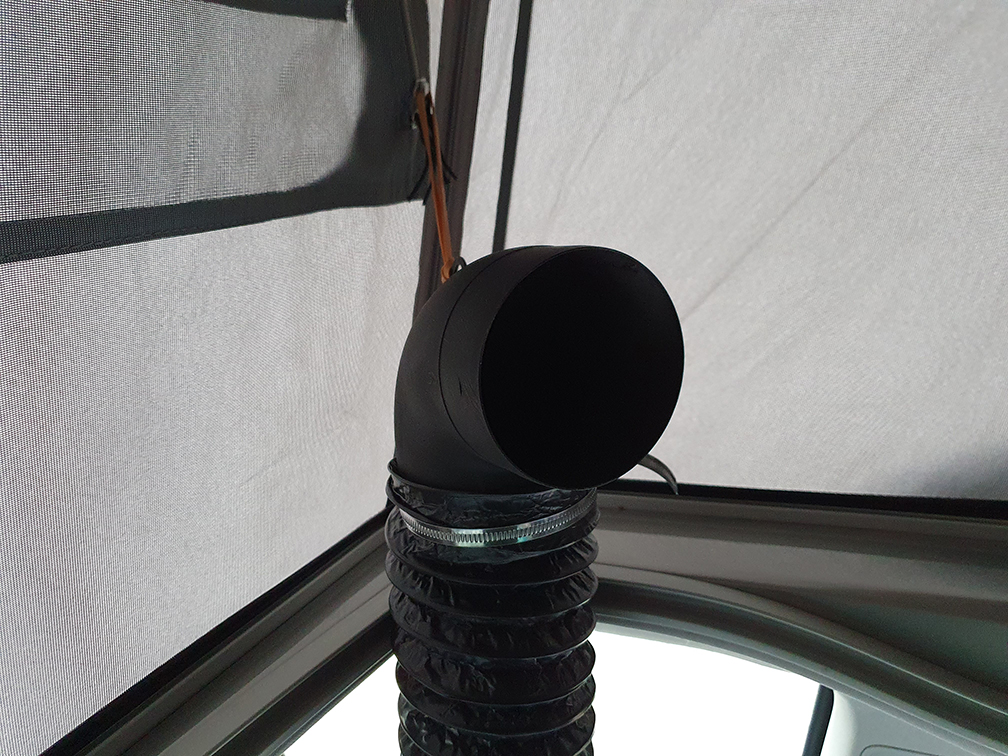

The part that blows the hot air into the poptop

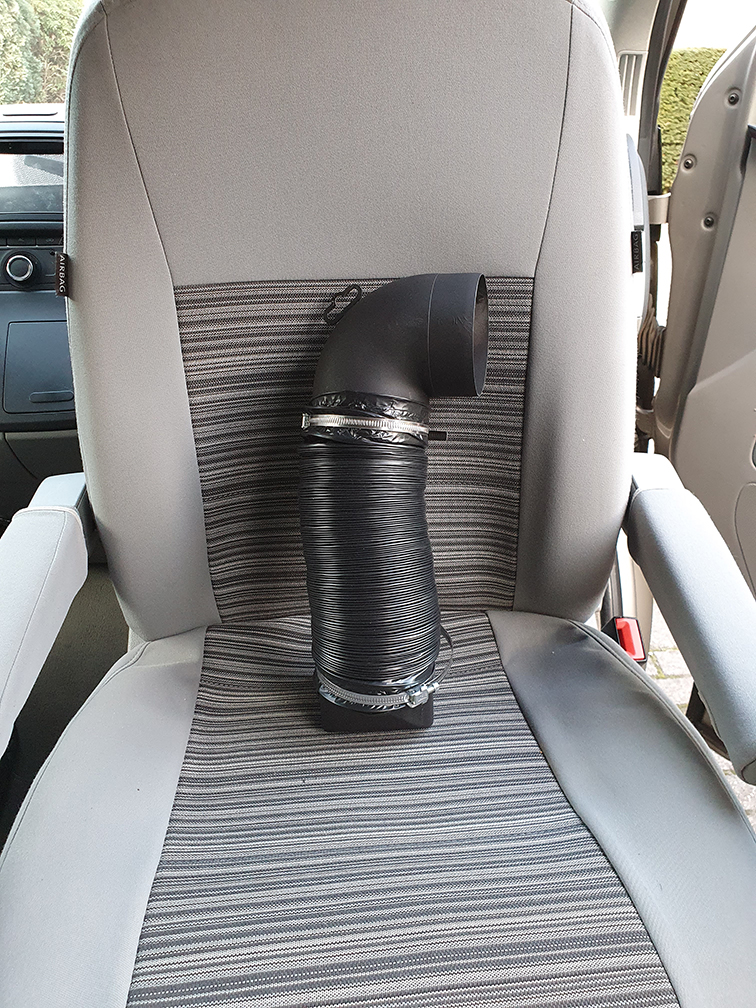

The contraption when not in use and packed away

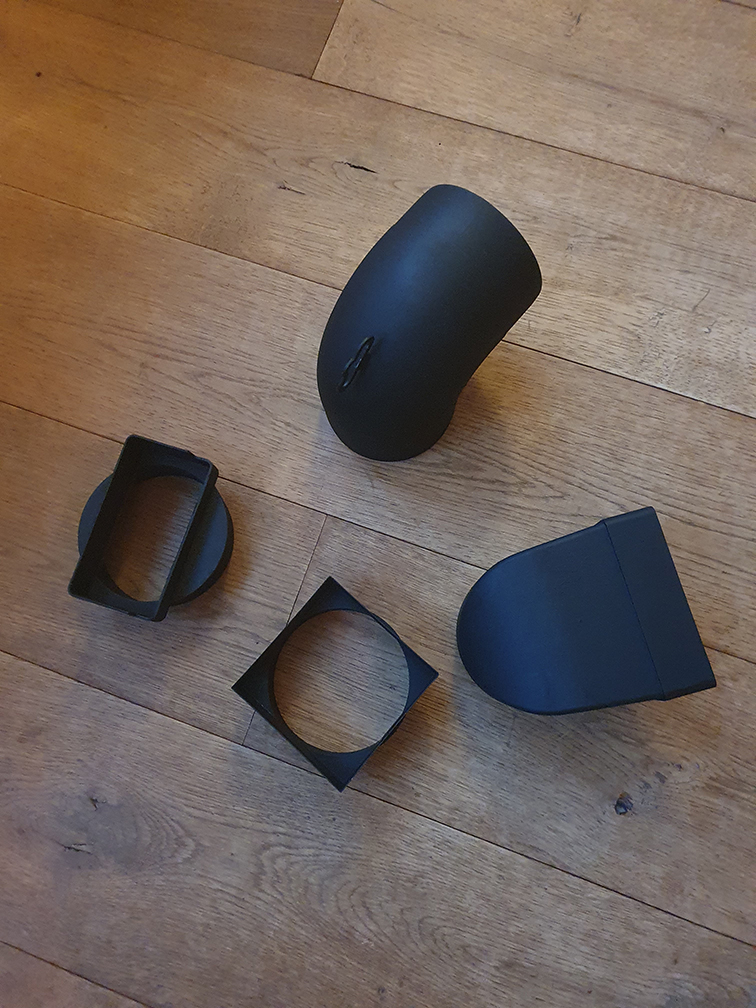

The different duct ends I considered using.

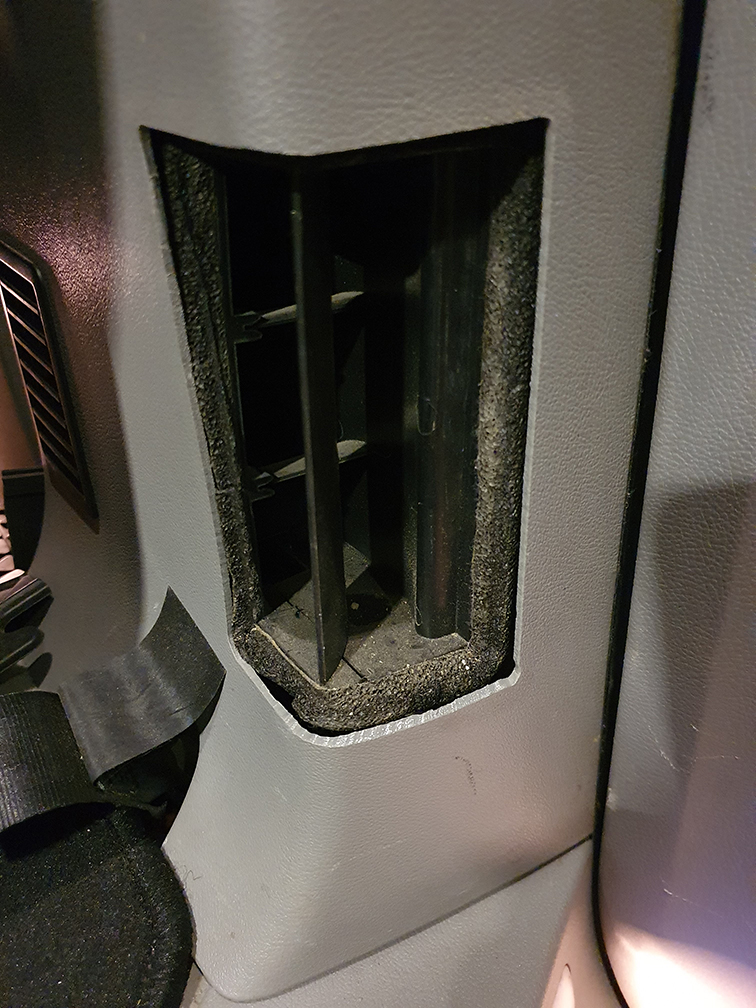

The inside of the B-pillar vent. You can see why you need to cut the duct end to fit. If you do not cut it to size, the seperator inside the vent makes it impossible for the duct end to stay in place.

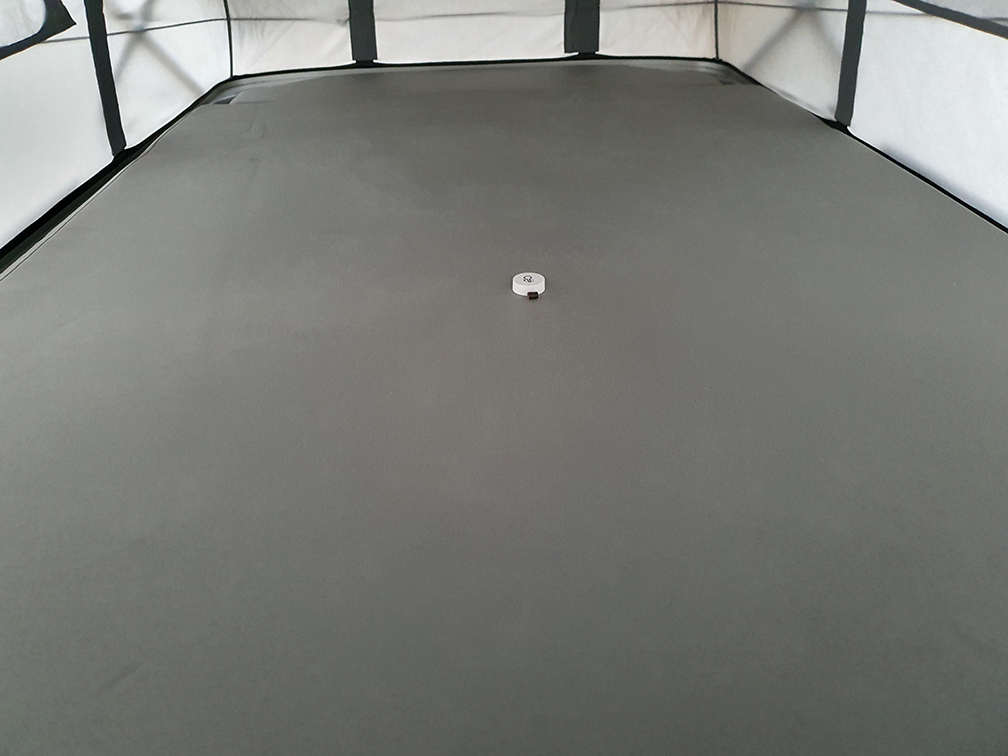

The bluetooth thermometer used to measure the temperature with and without the ducting hose.

Temperature Test
I used my bluetooth thermometer to do a small test. I placed it in the middle of the upper mattress. Closed all the doors. Obviously had the poptop up. And started the heater at setting 7. I let it run for 25 minutes.

Did the same procedure a second time, but with the ducting hose in place.

The results:

Without the ducting hose the temperature rose from 3.5 degrees C to 11 degrees C in 25 minutes.
With the ducting hose in place the temperature rose from 3.5 degrees C to 16 degrees C in 25 minutes.

In my opinion that's a very significant difference.



[GrumpyGranddad]

Finished mine today as well. Used black ducting hose and spray painted the white duct ends mat black for a less DIY-look. I'm quite happy with the result. And.... I did a small test in which I measured the temperature with and without the hose in place. See the end of my post for the results.

The entire setup in place.

The part that goes into the B-pillar vent

The part that blows the hot air into the poptop

The contraption when not in use and packed away

The different duct ends I considered using.

The inside of the B-pillar vent. You can see why you need to cut the duct end to fit. If you do not cut it to size, the seperator inside the vent makes it impossible for the duct end to stay in place.

The bluetooth thermometer used to measure the temperature with and without the ducting hose.

Temperature Test
I used my bluetooth thermometer to do a small test. I placed it in the middle of the upper mattress. Closed all the doors. Obviously had the poptop up. And started the heater at setting 7. I let it run for 25 minutes.

Did the same procedure a second time, but with the ducting hose in place.

The results:

Without the ducting hose the temperature rose from 3.5 degrees C to 11 degrees C in 25 minutes.
With the ducting hose in place the temperature rose from 3.5 degrees C to 16 degrees C in 25 minutes.

In my opinion that's a very significant difference.

Nice job Thomas.



[chockswahay]

OK Team, just found this thread today we have a ‘left over’ version from our previous HymerCar which I intend to modify for the B pillar outlet.

As a few seasons have passed does anyone now have any real world experience or advice to offer please?



[GrumpyGranddad]

OK Team, just found this thread today we have a ‘left over’ version from our previous HymerCar which I intend to modify for the B pillar outlet.

As a few seasons have passed does anyone now have any real world experience or advice to offer please?

Only used ours a couple of times but it was very effective. The only negative is that it takes up valuable storage space. We’re getting better at only taking what we need for a particular trip.
A late (very) update post on ours. We fitted a couple of clamps which attach to the rail that the storage net is fitted to.



[M88GAV]

Thanks to everyone that contributed to this post.
I made one myself and used it for the first time this weekend. Worked very well!!



[ThomasHJ]

Looks really nice. How is the upper part/outlet connected to the van?



[M88GAV]

Looks really nice. How is the upper part/outlet connected to the van?

It’s attached to the storage net rails with two of these.

Langaelex Set of 10 Tarp Clips Heavy Duty Lock Grip Tent Clips Clamps with Thumb Screw and Bungee Ball Cords + Carabiner for Fixing Tarps, Awnings, Tarpaulin, Outdoor Camping, Caravan Canopies https://amzn.eu/d/anjJfa9



[M88GAV]

Looks really nice. How is the upper part/outlet connected to the van?

I’ve just noticed the post above mine shows exactly how it is done. I copied the idea from there
