Where to buy: Leisure battery charger

qyou

qyou

Messages
33
Location
bristol
Vehicle
T4 PopTop
Hi WelshGas, you can tell I'm new can't quite use the forum very well. I've had a problem with my charger, have you replaced yours with
IUoU Automatic Battery Charger BLG20M12V_S? I'm thinking of doing it I have a 2002 Westfalia California Event the LB is new had it on charge for 48 hours after which battery symbol still flashed. Plug in symbol was showing, all cables and fuses and trip switch all in order but still flashing battery symbol??
When I turn the ignition on for a few seconds and rev a little turn ignition off battery symbol stops flashing and the scale appears small battery read out gap then large battery read out. However this only lasts for a few seconds then the battery symbol starts flashing again. My thinking is the engine is charging the LB slightly but the hook up isn't charging hence I may need a replacement. How easy are these to fit if your a beginner like me?
qyou

Fits the T4

Or you can use other makes but might lose some Control Panel functionality.[/QUOTE]

WelshGas

WelshGas

Retired after 42 yrs and enjoying Life.
Top Poster
Lifetime VIP Member
Messages
19,989
Location
United Kingdom
Vehicle
T5 SE 180 4Motion
Hi WelshGas, you can tell I'm new can't quite use the forum very well. I've had a problem with my charger, have you replaced yours with
IUoU Automatic Battery Charger BLG20M12V_S? I'm thinking of doing it I have a 2002 Westfalia California Event the LB is new had it on charge for 48 hours after which battery symbol still flashed. Plug in symbol was showing, all cables and fuses and trip switch all in order but still flashing battery symbol??
When I turn the ignition on for a few seconds and rev a little turn ignition off battery symbol stops flashing and the scale appears small battery read out gap then large battery read out. However this only lasts for a few seconds then the battery symbol starts flashing again. My thinking is the engine is charging the LB slightly but the hook up isn't charging hence I may need a replacement. How easy are these to fit if your a beginner like me?
qyou

Fits the T4

Or you can use other makes but might lose some Control Panel functionality.
[/QUOTE]
Unfortunately I don't have a T4 but a T5.1 California. All I can say is that on my vehicle, If you can wire a plug then you should be able to change over the Charger. Hopefully someone with a T4 may be able to give you a fuller answer. Sorry.

qyou

qyou

Messages
33
Location
bristol
Vehicle
T4 PopTop
Thanks, that's helpful, I'm going to remove the charger tomorrow to see if I can spot any obvious damage.
qyou

ArcticMatt

ArcticMatt

VIP Member
Messages
466
Location
Beiarn, Norway
Vehicle
T4 Hightop

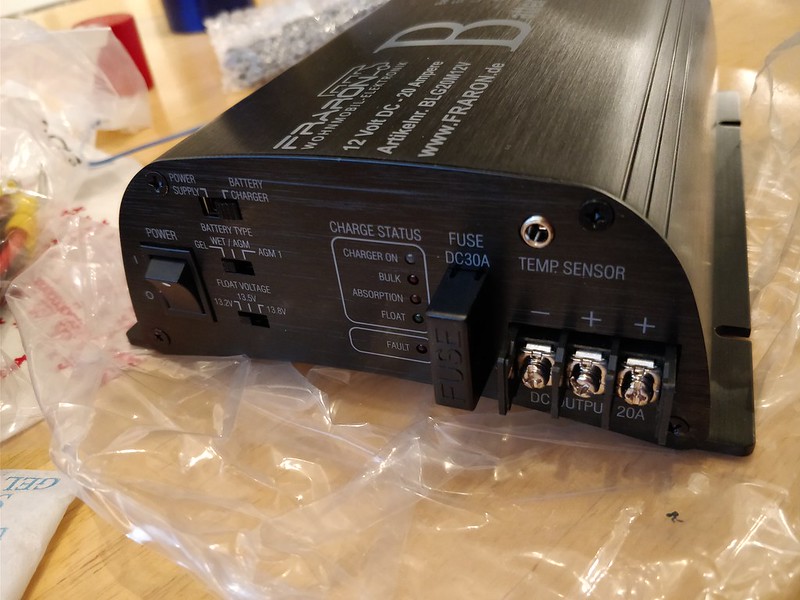

I was impressed by the look of the Fraron unit so I've bought one for mine before the OEM charger gives up the ghost. I was impressed with the dual output so I can do away with the extra charger Ive got fitted for the started battery. I was wondering if I should make a little access window on the side to view the status lights perhaps. Watch this space




apatchee

apatchee

Messages
61
Location
Wimborne
Vehicle
Looking to buy
I was impressed by the look of the Fraron unit so I've bought one for mine before the OEM charger gives up the ghost. I was impressed with the dual output so I can do away with the extra charger Ive got fitted for the started battery. I was wondering if I should make a little access window on the side to view the status lights perhaps. Watch this space



Hi, Looks a impressive bit of kit. What’s the wiring going to be like switching it for the original unit?
My original charger gave up so was looking at different options.
Thanks

ArcticMatt

ArcticMatt

VIP Member
Messages
466
Location
Beiarn, Norway
Vehicle
T4 Hightop
Hi, Looks a impressive bit of kit. What’s the wiring going to be like switching it for the original unit?
My original charger gave up so was looking at different options.
Thanks
It comes with two pre crimped pairs which will have to be connected to the existing battery plus the correct plug for the westy control panel. Just a new battery temperature sensor to the battery negative and that's it. Not fitted mine yet though as it only arrived as I was leaving for two weeks so I'll let you know when it fully fitted

Sent from my ONEPLUS A5000 using Tapatalk

apatchee

apatchee

Messages
61
Location
Wimborne
Vehicle
Looking to buy
It comes with two pre crimped pairs which will have to be connected to the existing battery plus the correct plug for the westy control panel. Just a new battery temperature sensor to the battery negative and that's it. Not fitted mine yet though as it only arrived as I was leaving for two weeks so I'll let you know when it fully fitted

Sent from my ONEPLUS A5000 using Tapatalk

Excellent! Just had a look where the charger is sited under fridge and mine is totally missing.
Just the kettle plug and a bank plug sat in its place.
This replacement charger is definitely on my list to get in the New Year.
Thanks

ArcticMatt

ArcticMatt

VIP Member
Messages
466
Location
Beiarn, Norway
Vehicle
T4 Hightop
ArcticMatt

ArcticMatt

VIP Member
Messages
466
Location
Beiarn, Norway
Vehicle
T4 Hightop

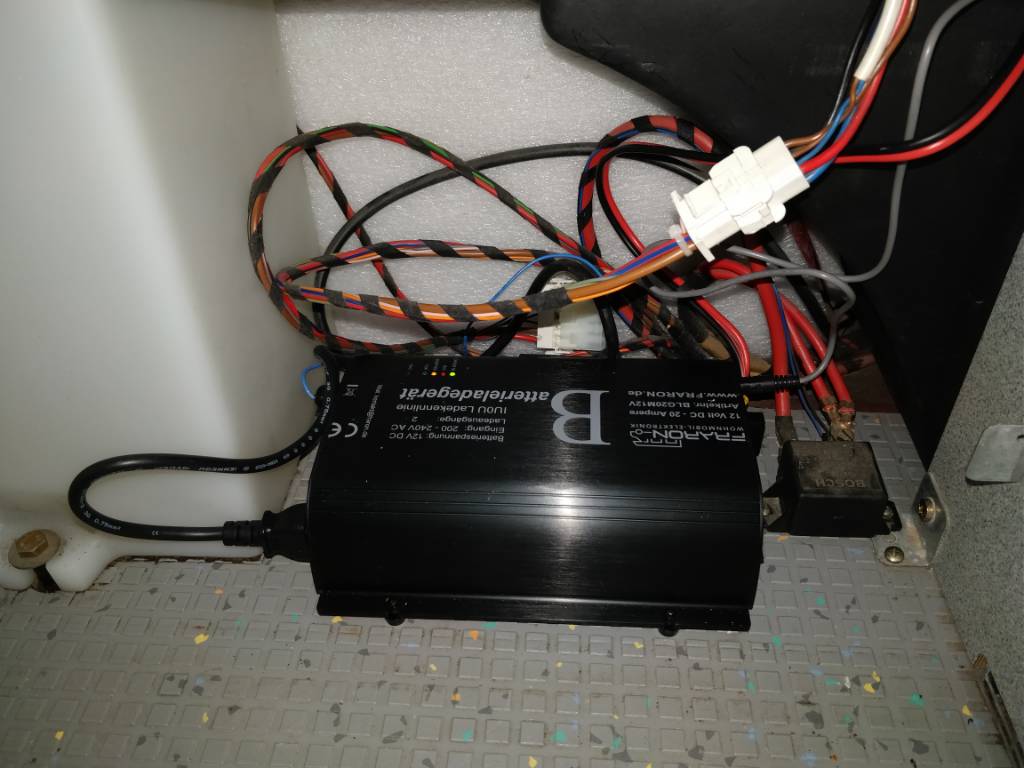

Finally got around to fitting my new charger. Works and fits a treat. Just got it wired to the leisure battery for now. Still to run a new feed to the starter battery to tie in with my excess solar charge unit


Sent from my ONEPLUS A5000 using Tapatalk

Pat

Pat

Messages
29
Location
Cork, Ireland
Vehicle
T4 PopTop
Well after taking the charging unit out of the van and opening it up it was pretty obvious what the first thing to sort was. One of the capacitors (yellow rectangular one near the smaller pcb connector) had exploded and covered part of the pcb in a tar like substance. I desoldered what was left of it and cleaned the pcb up as best as i could.
I replaced the capacitor and the fuse next to it that it had took out and hoped there wasn't any more damage.
Turned out there was - the track on the pcb which runs from one leg of the capacitor to the mains filter was open circuit, even though it looked ok, so I put a link in on the under side of the pcb to rectify this.
I also found several dry joints on the smaller mains input pcb, which would simply have been caused by age (25 years old!) so I re-soldered these.
Popped it back in the van and jobs a good'un - everything charging as it should and the control panel working as it should.
Hi Dubster - I'm hoping you are still a member, cos I've got a very similar situation. 2 capacitors, 0.1uF and 0.68uF (and a third looks a bit stressed) have split and let black gunk ooze over the PCB. The supply seems to be working OK, so maybe these are purely for RF suppression and I'm just being anti-social! I rarely use official sites so most use for the charger is at home when I keep the leisure battery topped up. Where did you source the replacements? And are they Polyester Film? I can't identify anything exactly like them in RS, Farnell, Maplin et al. Alas there's nothing like the German Conrad store near here.
I think I caused the damage one night when the leisure battery was low and I charged it up while also running the fridge - smell of hot transformers/wiring next morning.
Oh - if you happens to have a source for a circuit diagram that would help. It's been 30 years since I did any serious problem tracing and repair on analogue electronics.
