Winch install 6.1

[Californication69]

I think there would be room to bolt this to the front crash bar assembly. I'm finding the drill bits don't go into the hardened steel though.

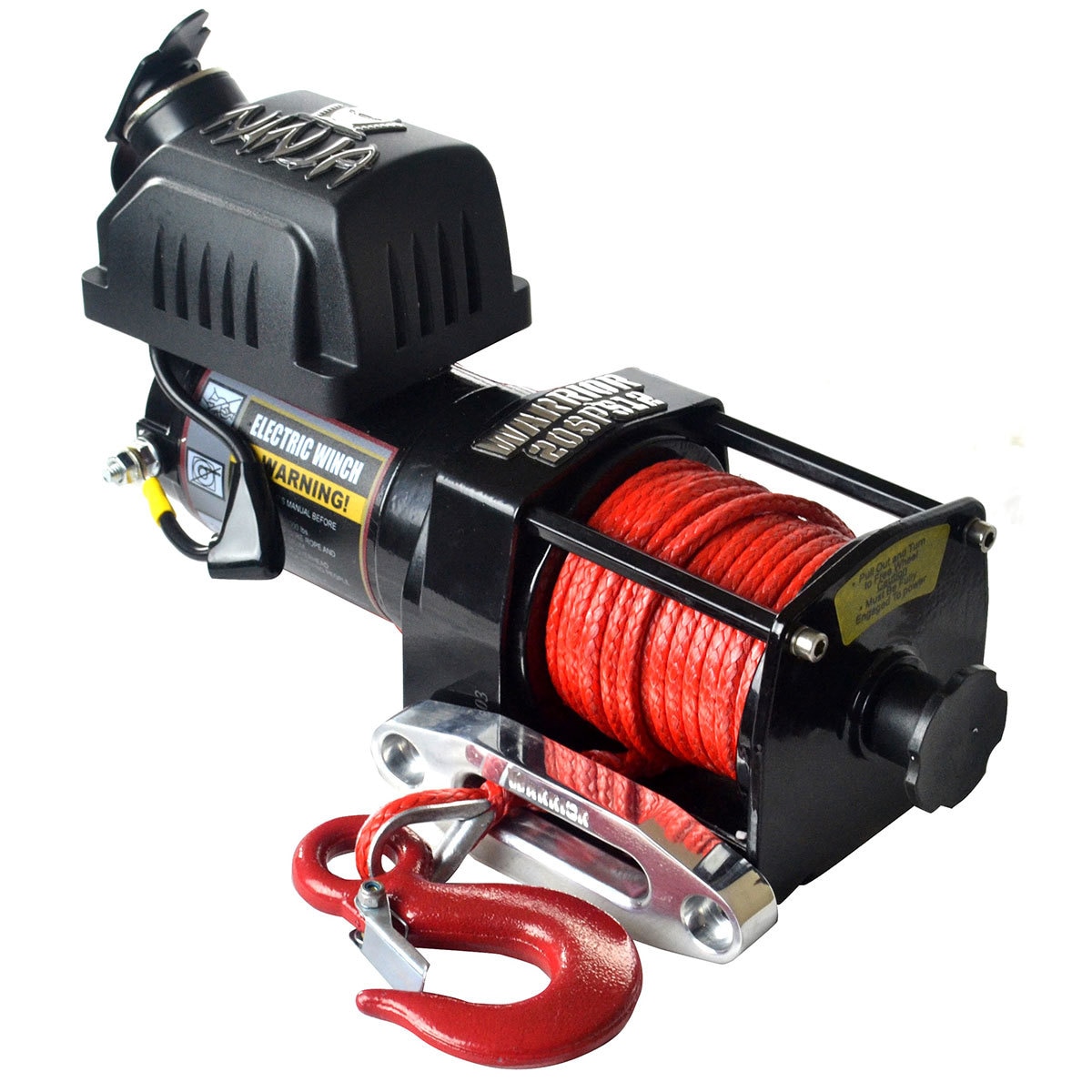

Warrior Ninja 2000 Synthetic Rope Electric Winch - Model ...

User Manual Technical Diagram Installation Plate Diagram The Warrior Ninja 2000 is an outstanding utility winch. There is no comparable model on the market, the unique free spool system ensures it outperforms all challengers. Standard specification includes a powerful 1.0hp motor, full steel...

www.costco.co.uk

What drill bit is needed to drill into very hard steel ? Diamond bit?



[Defender90]

I think there would be room to bolt this to the front crash bar assembly. I'm finding the drill bits don't go into the hardened steel though.

Warrior Ninja 2000 Synthetic Rope Electric Winch - Model ...

User Manual Technical Diagram Installation Plate Diagram The Warrior Ninja 2000 is an outstanding utility winch. There is no comparable model on the market, the unique free spool system ensures it outperforms all challengers. Standard specification includes a powerful 1.0hp motor, full steel...

www.costco.co.uk

What drill bit is needed to drill into very hard steel ? Diamond bit?

tungsten carbide drills



[Tarquers]

@Californication69 how did you get on with a winch install? Any pics?



[Calimili]

Need to get a winch too, since I don't have Diff. Lock.



[Tarquers]

Need to get a winch too, since I don't have Diff. Lock.

Folgen sie mir?



[B J G]

I'd very much doubt that the front crossbar is designed to take a winch big enough to unstick a 3 tonnes Cali and pull it through or up difficult terrain.

Equivalent to bolting a tow hitch to the rear bumper? Without the subframe attachment to the chassis rails.



[Tarquers]

I'd very much doubt that the front crossbar is designed to take a winch big enough to unstick a 3 tonnes Cali and pull it through or up difficult terrain.

Equivalent to bolting a tow hitch to the rear bumper? Without the subframe attachment to the chassis rails.

Seikel disagree...

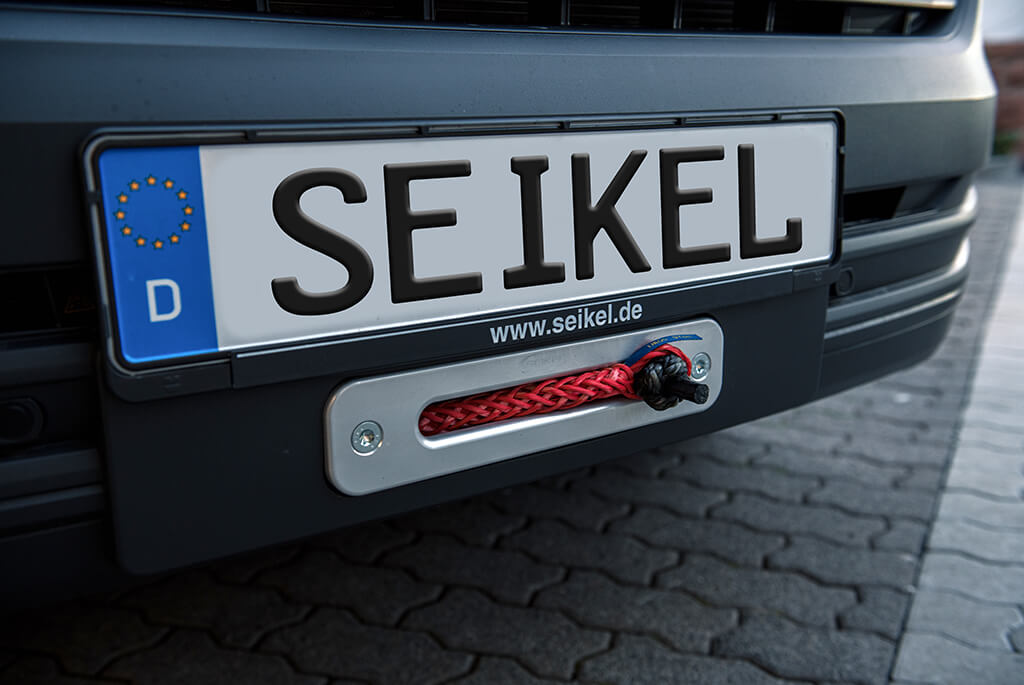

3,600 kg winch, 12 V with plastic rope - Seikel

•3,600 kg tractive power • 27 m x 9,4mm plastic rope • Safety hook • Rope freewheel clutch • Includes holder and electric wiring • Relay remote control with cable length of 3.7 metres • Pre-assembled ready to mount • Winch attachment kit (incl. two towing eyes) • Aluminium window for plastic...

www.seikel.de



[B J G]

Seikel disagree...

3,600 kg winch, 12 V with plastic rope - Seikel

•3,600 kg tractive power • 27 m x 9,4mm plastic rope • Safety hook • Rope freewheel clutch • Includes holder and electric wiring • Relay remote control with cable length of 3.7 metres • Pre-assembled ready to mount • Winch attachment kit (incl. two towing eyes) • Aluminium window for plastic...

www.seikel.de

As I thought Seikel supply a new crossmember that replaces the existing crossmember to mount the winch onto. This also entails cooling pipe replacement.

Download the instructions for more info.

Result Installation guidelines - Seikel

www.seikel.de

Quite a weight penalty for a 4Motion which in the T6.1 appears to be getting critical.

Did look like the winch mounting/crossbar was a heavy duty alloy material which would reduce weight.



[Maeve]

Seikel disagree...

3,600 kg winch, 12 V with plastic rope - Seikel

•3,600 kg tractive power • 27 m x 9,4mm plastic rope • Safety hook • Rope freewheel clutch • Includes holder and electric wiring • Relay remote control with cable length of 3.7 metres • Pre-assembled ready to mount • Winch attachment kit (incl. two towing eyes) • Aluminium window for plastic...

www.seikel.de

I had this installed on my T6 Ocean last October by a local shop and I have not noticed an discernable differnece in the drive quality and the level of comfort it provide after a "issue" where I had wished I had it in August of 2020 is considerable. If you are thinking of doing things with your Cali that "average folks" would not do...I can highly recommend it.



[Maeve]

As I thought Seikel supply a new crossmember that replaces the existing crossmember to mount the winch onto. This also entails cooling pipe replacement.

Download the instructions for more info.

Result Installation guidelines - Seikel

www.seikel.de

Quite a weight penalty for a 4Motion which in the T6.1 appears to be getting critical.

I only suspect this is going to get worse when the T7 finally arrives....
